Laird 460-470MHz 5dBi, 100W Fiberglass Omni Base Antenna (FG4603)

Product was successfully added to your shopping cart.

Details

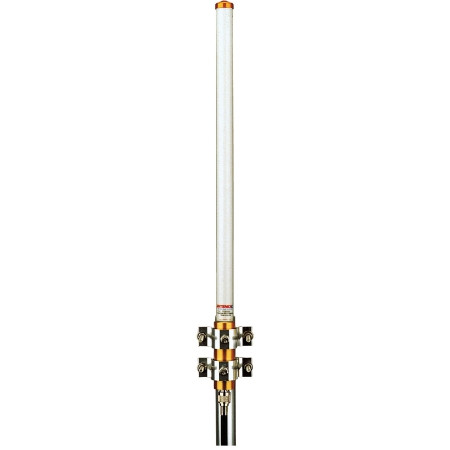

The Laird FG4603 is a UHF (460-470MHz) 5dBi) omnidirectional fiberglass base station antenna with an N-female connector. It incorporates a protective ultraviolet inhibiting coating to perform in extreme conditions.

UHF omnidirectional antenna
460-470 MHz frequency range
VSWR: <2:1
50 Ohms
5dBi gain
44 in. / 111.76 cm length
100 watts maximum power
Special UV-treated radom resists sun damage
collinear J-pole design
Enclosed in high density fiberglass
Durable gold anodized sleeve that will not oxidize
100% tested on a network analyzer
N-female connector
Easy installation with optional FM2
Requires Laird FM2 Fiberglass Antenna Mounting Kit (sold separately)
Works with GMRS Base/Mobile Two Way Radios

Note: Laird external antennas are now part of TE Connectivity.

FG4603 Specifications

Electrical Specifications
Frequency Range (MHz)	460 – 470
VSWR – Max	<2:1
Gain	5dBi)
Max Power - Ambient 25°C (W)	100W
Polarization	Vertical
Nominal Impedance	50 Ohms
Lightning Protection	DC Ground
Pattern	Omnidirectional

Mechanical Specifications
Dimensions – diameter x height – inches/cm	1.31 x 44.0 in./3.33 x 111.76cm
Weight – lbs./kg	3.5 lb./1.59kg
Lightning Protection	Lightning Arrestor – LABH350NN (Sold separately
RF Connector	N Female
Color	White

Additional Information

Color	White
Service / Frequency	Business, GMRS, UHF
Number of Bands	Single Band
Connector	N Female
Includes Cable/Mount	No

Laird 4603 GMRS Antenna review by John M on 4/30/2024

Rating

Bought the Wouxun 1000 G Base, had a custom cable made for it, put it 26 feet in the air, tested the SWR's and they were dead on 1, I am very happy with this set up.
