Laird 460-470MHz, 9dBi, 100W Fiberglass Omni Base Antenna (FG4607)

Product was successfully added to your shopping cart.

Details

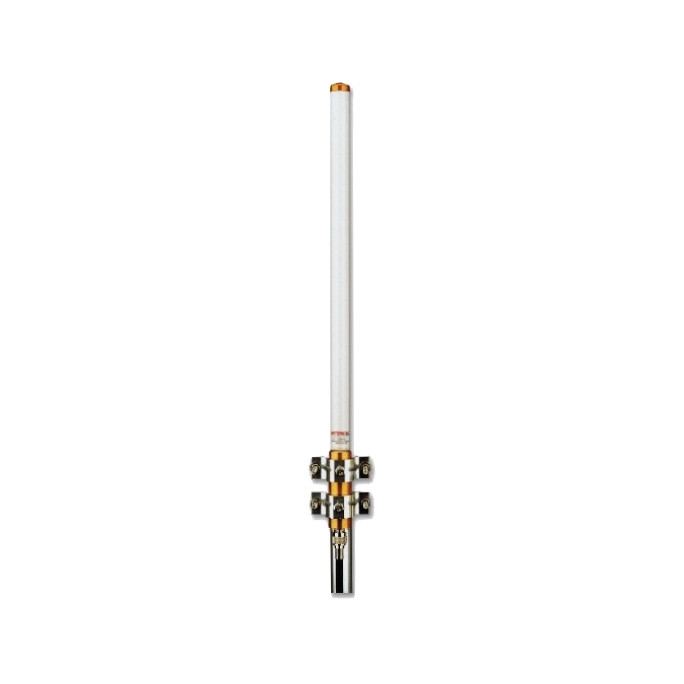

The Laird FG4607 is a UHF (460-470 MHz) omnidirectional fiberglass base station antenna with an N-female connector It incorporates a protective ultraviolet inhibiting coating to perform in extreme conditions.

UHF omnidirectional antenna
460-470 MHz frequency range
VSWR: 2.1 max
7 dBd / 9 dBi gain
76 in. / 193 cm length
100 watts maximum power
Radiating elements are carefully phased to provide maximum gain in the horizontal plane
The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve for greater freedom in mounting.
Collinear design that is enclosed in high density fiberglass
Custom UV protection coating
Durable gold anodized sleeve and cap
N-female connector
Omnidirectional outdoor antennas used in commercial, public safety, and government applications around the globe.
Typical applications include land based and marine radio and voice and data transmission
Pole mount
Requires Laird FM2 Fiberglass Antenna Mounting Kit (sold separately)
Works with GMRS Base/Mobile Two Way Radios

Note: Laird external antennas are now part of TE Connectivity.

FG4607 Specifications

Electrical Specifications
Frequency Range (MHz)	460 – 470
VSWR	<2.1 Max
Nominal Gain	7 dBd (9 dBi)
Nominal Impedance	50Ω
Max Power	100W
Polarization	Vertical
Half-Power Beamwidth (Elevation° x Azimuth°)	26° x 360°
Coaxial Cable Length & Type	None
Termination	N-Female connector
Lightning Protection	Lightning Arrestor LABH350NN (Sold Separately)

Mechanical Specifications
Height	106 1/4"
Weight	<3 lbs
Rated Wind Velocity:	125 mph/210 kph
Rated Wind Velocity(with 0.5” radial ice):	85 mph/137 kph
Lateral Thrust @ 1.25 mph wind velocity:	57 lbs/26 kg
Mounting Information:	Pole Mount, FM2 Mounting Kit (sold Separately)
Operating Temperature:	-22°F to 185°F / -30°C to +85°C
Color	White

Additional Information

Color	White
Service / Frequency	Business, GMRS, UHF
Number of Bands	Single Band
Connector	N Female
Includes Cable/Mount	No
