Messi & Paoloni Hyperflex 13 Premium .500" Pre-assembled Coax

Product was successfully added to your shopping cart.

- The product Messi & Paoloni Ultraflex 10 Premium .400" Pre-assembled Coax - N Male Connectors has been added to comparison list.

Details

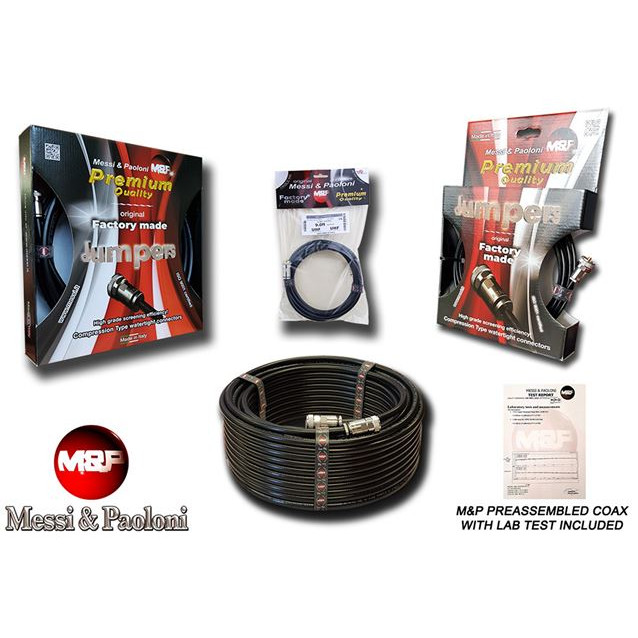

Why spend your time assembling cables and connectors yourself? Choose a ready-made cable instead! Messi & Paoloni Hyperflex 13 pre-packaged coax jumpers are assembled right in the factory and individually lab tested for quality assurance. The lab certificate is enclosed in each package for verification.

Why choose Messi & Paoloni Hyperflex 13 cable?

12.7mm (.500") cable
The only coaxial cable that has 37 wires on the central conductor
Designed to withstand tight bending and rotor antennas
Equal attenuations to stiffer and bulkier 15mm (.500") cables
A must-have for the most ambitious installations
Excellent performance with the lowest possible signal loss, even at higher frequencies and long distances
Better than Ultraflex 13 at high frequencies (UHF) and slightly more flexible

Hyperflex 13 Attenuation (68°F / 20°C)

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m
1.8 MHz	0.1	0.5
3.5 MHz	0.2	0.6
7 MHz	0.2	0.8
10 MHz	0.3	1.0
14 MHz	0.3	1.1
21 MHz	0.4	1.3
28 MHz	0.4	1.5
50 MHz	0.6	2.0
100 MHz	0.8	2.8
144 MHz	1.1	3.6
200 MHz	1.3	4.2
400 MHz	1.8	6.1
430 MHz	1.9	6.4
800 MHz	2.7	9.0
1000 MHz	3.0	10.1
1296 MHz	3.5	11.7
2400 MHz	5.0	16.6
3000 MHz	5.7	18.9
4000 MHz	6.8	22.4
5000 MHz	7.8	25.6
6000 MHz	8.7	28.7
7000 MHz	9.6	31.7
8000 MHz	10.5	34.5
9000 MHz	11.4	37.5
10000 MHz	12.3	40.5
12000 MHz	14.0	46.0
