Details

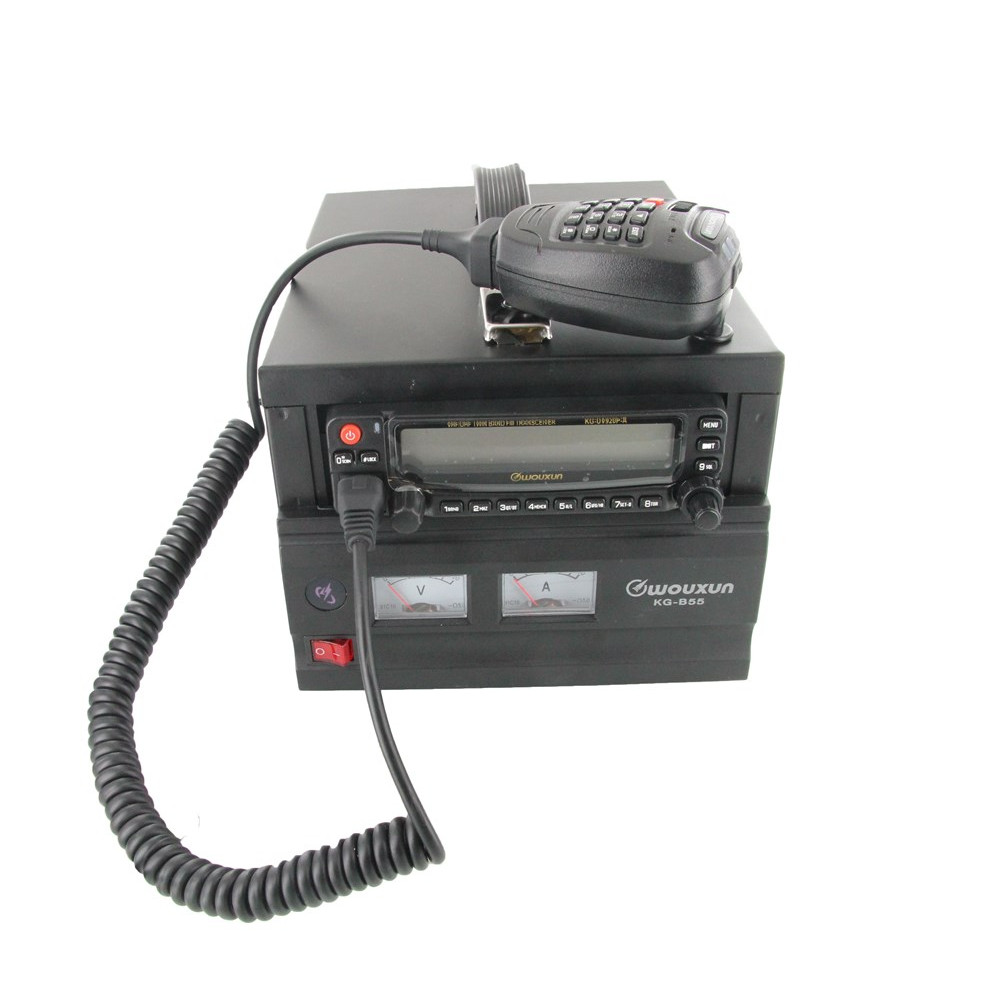

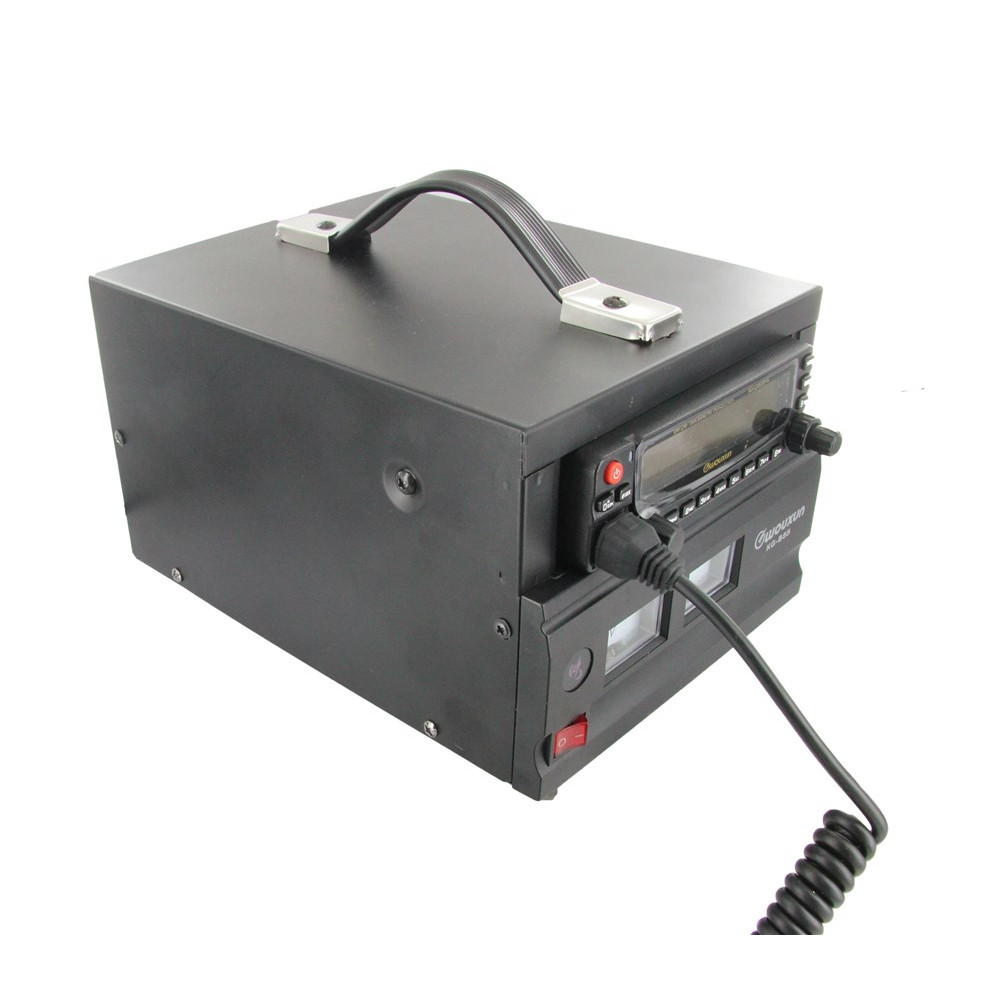

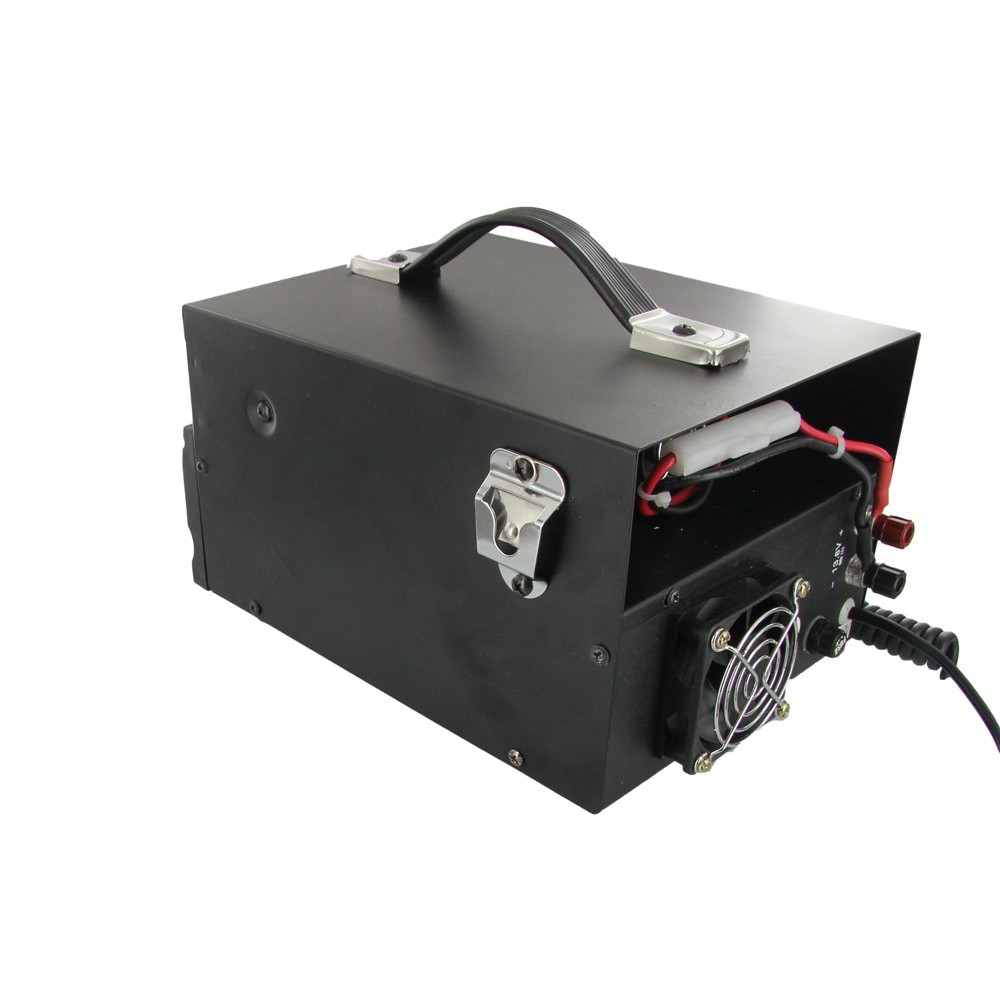

The Wouxun KG-B55 Dual Band UHF/VHF base station combines the ever popular KG-UV920P-A dual band mobile radio with dedicated a power supply into one, solid, standalone unit loaded with powerful features! Pre-wired, mounted together, complete with carrying handle, the KG-B55 provides the full base station operation at a minimal cost!
The KG-B55 features the powerful KG-UV920P-A dual band two way radio with its 999 programmable memory channels and twin band simultaneous reception. Select wide or narrow bandwidth at the press of a button and freely set bands on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well. Choose from high, medium or low power options according your needs.
Want more than just a base station? How about a cross-band repeater? With the KG-UV920P-A installed, the KG-B55 is a full duplex cross-band and cross-band mobile repeater with five repeater settings - normal radio mode, directional cross-band repeater mode, two way cross band repeater mode, repeater receiving mode (receiver) or repeater transmitting mode (transmitter). You can even connect two units together to set up your own working repeater.
Other features include a 76-108Mhz FM radio, 1750Hz burst tone, group calls, 8 group scrambler, low voltage voice prompt, channel Name edit and display, stun and kill function, reduced noise settings, remote control setting and a built-in cooling fan.

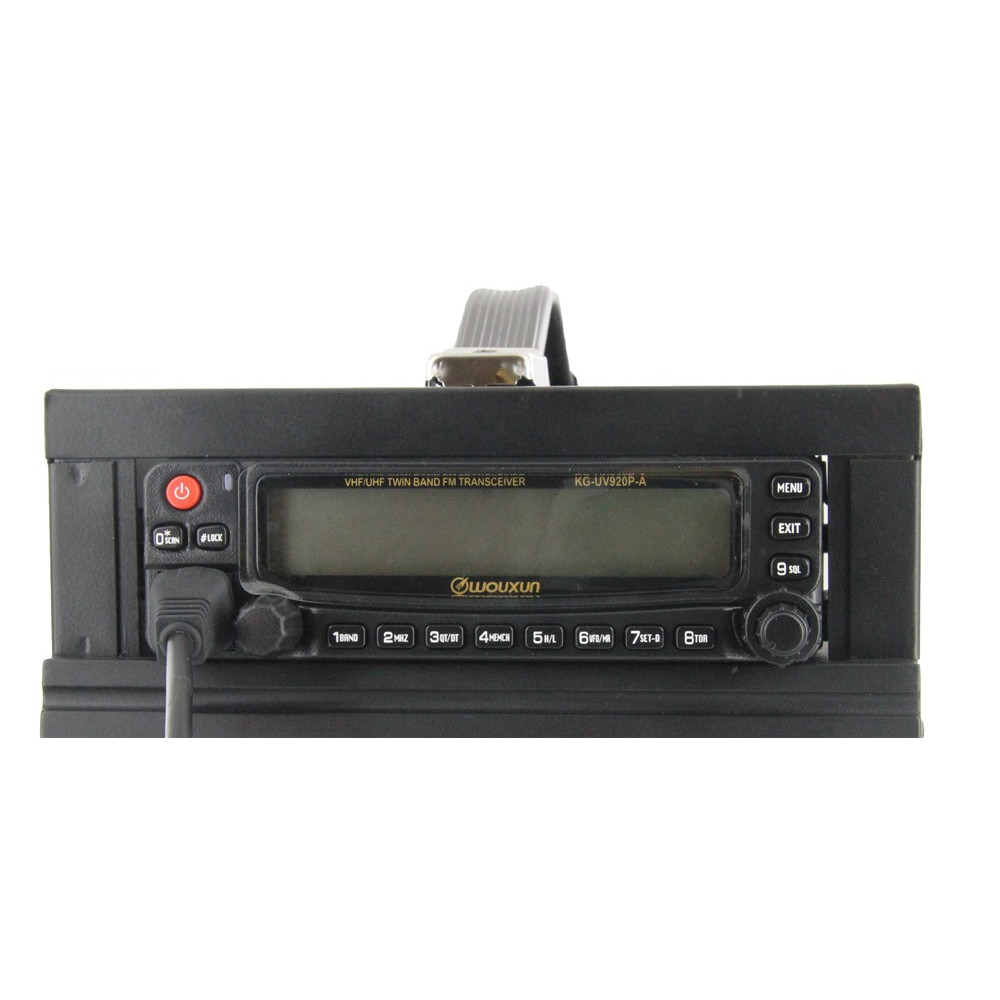

The KG-UV920P-A makes the KG-B55 base station even better with its large, dual frequency LCD display and a 3-color selectable backlight, handheld speaker mic with full featured backlit keypad, dual speakers built into the radio chassis and voice prompts to assist with menu navigation.

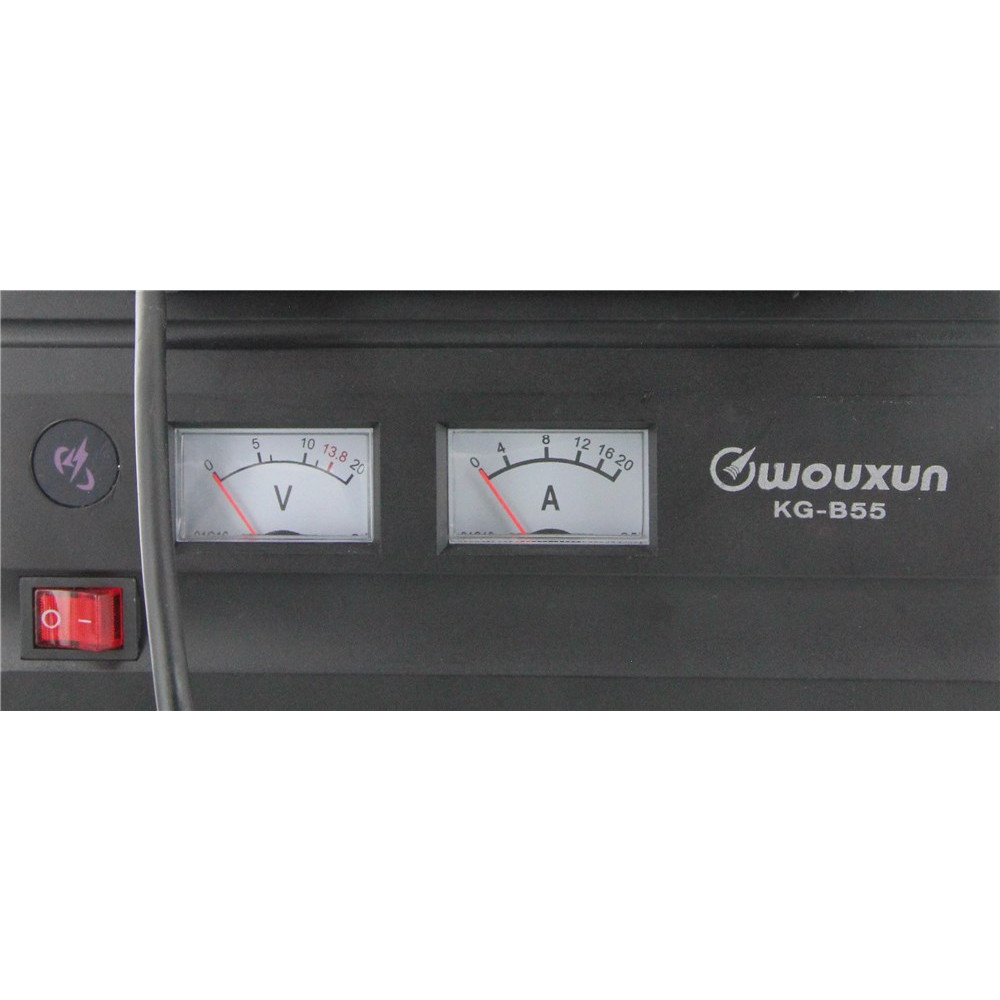

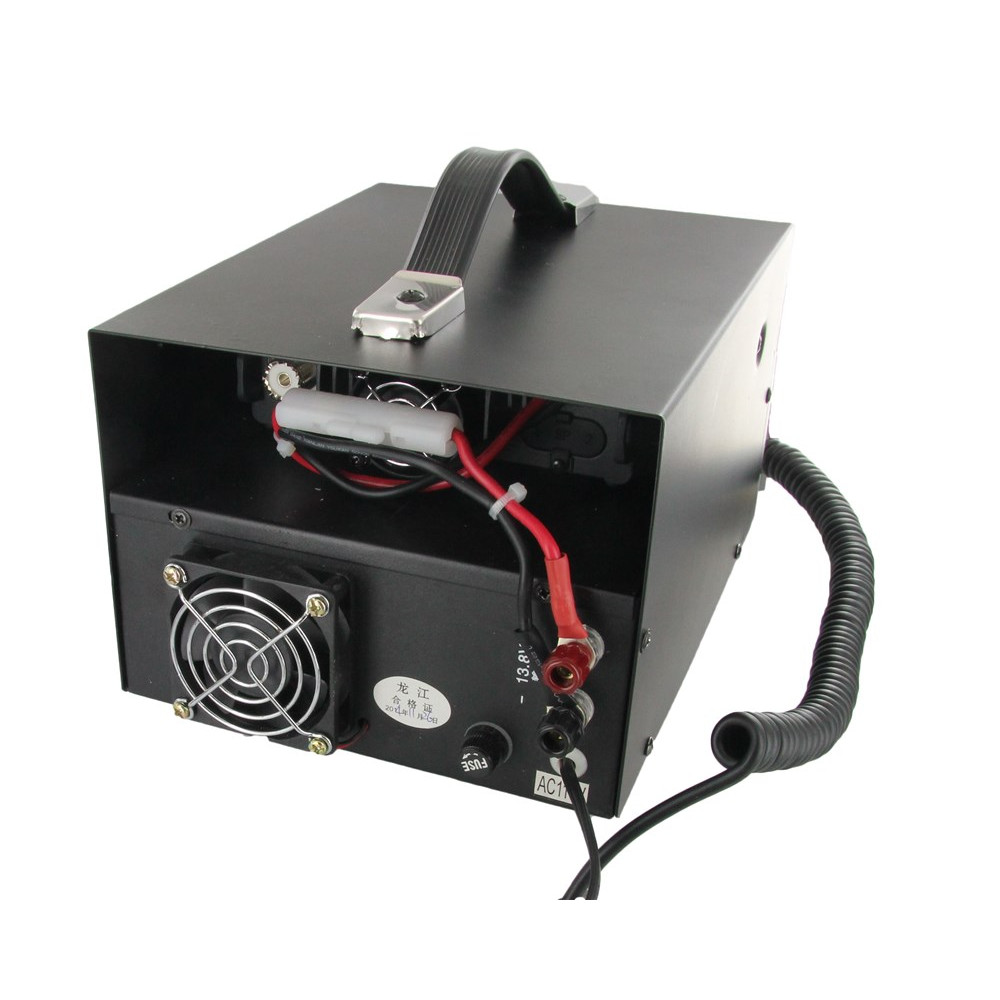

The KG-B55 is powered by a power supply that is built into the unit to deliver a constant 13.8V to the radio. The power supply features two analog meters, one for for volts and one for amps.tion!
The Wouxun KG-B55 comes with hand microphone with speaker, an owner's manual and a one year manufacturer warranty from Wouxun.
Optional Programming Cable
For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-UV920P-A from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-B55 Features
- 999 Memory Channels
- Dual Band
- 144-148MHz VHF Frequencies
- 420-450MHz UHF Frequencies
- 220MHz Frequencies (220 Version Only)
- Repeater Capable
- Full Duplex Cross-Band and Cross-Band Repeater
- 8 Group Scrambler
- 40W/50W Transmit Power
- FM Radio
- Memory Channel
- Channel Scan
- Priority Scan
- Dual Watch
- Busy Channel Lockout
- Full Duplex Cross Band and Cross Band Repeater
- CTCSS/DCS Encode/Decode
- CTCSS/DCS Tone Scan
- Selectable 3 Color Backlit LCD Display
- Backlit Keypad
- Channel Name Edit and Display
- Battery Meter
- Minimum Operating Voltage Alarm
- Power Saver
- Auto Power Off
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- Voice Promps
- Dual 3.5mm Speaker Ports
- Cloning Capable
- PC Programmable (Requires Optional Cable)
- Dual Speaker and Dual Output

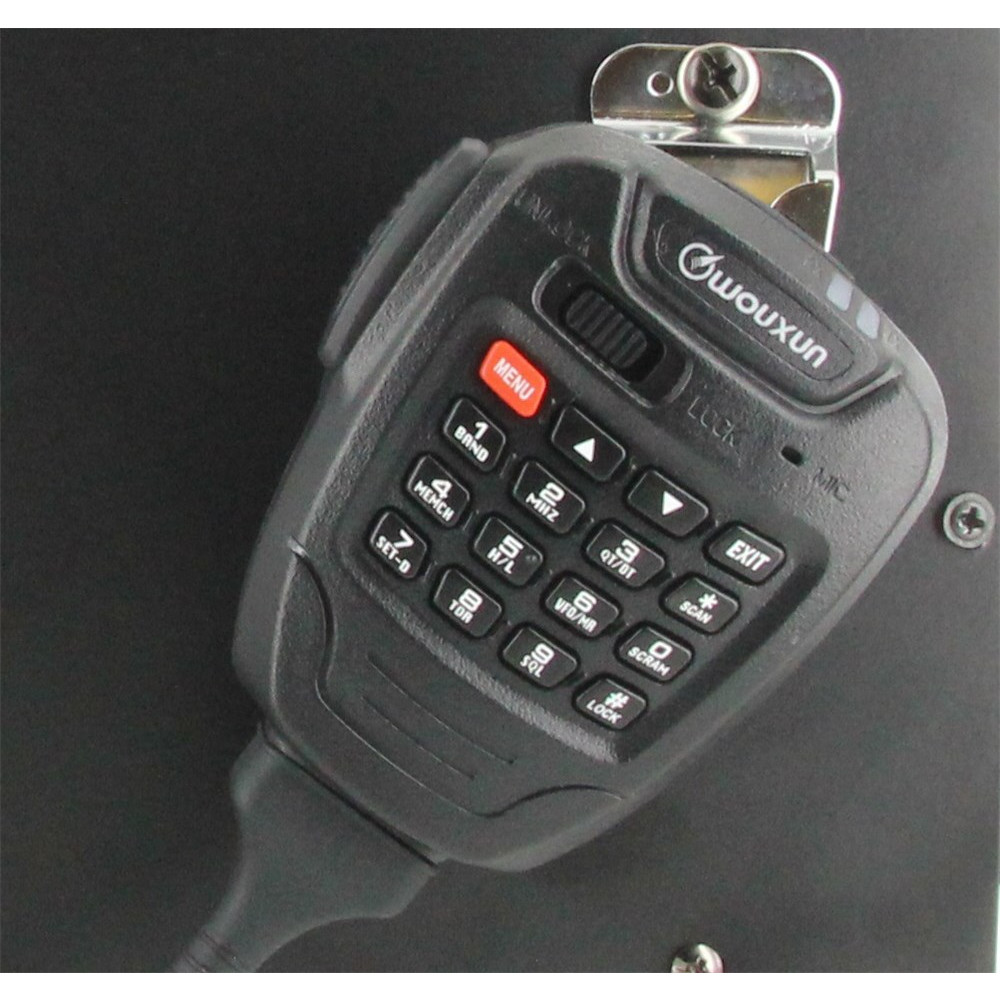

- Backlit DTMF Hand Microphone With Speaker
- Cooling Fan
- Remote Front Panel Installation Option
- DTMF Encoding and Decoding
- Stun and Kill Function
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-B55
- Wouxun KG-B55 Dual Band 2m/440 Base Station
- Hand Microphone
- Owners Manual
Wouxun KG-B55 Specifications
- Dimensions: 5 11/16" (H) x 7 1/32" (W) x 10 3/32" (D) / 178.59mm × 144.46mm × 256.38mm
- Weight:: 14.15 lbs. / 6.41kg (Including Microphone)
- Antenna Connector Type: SO-239 (UHF Female)
