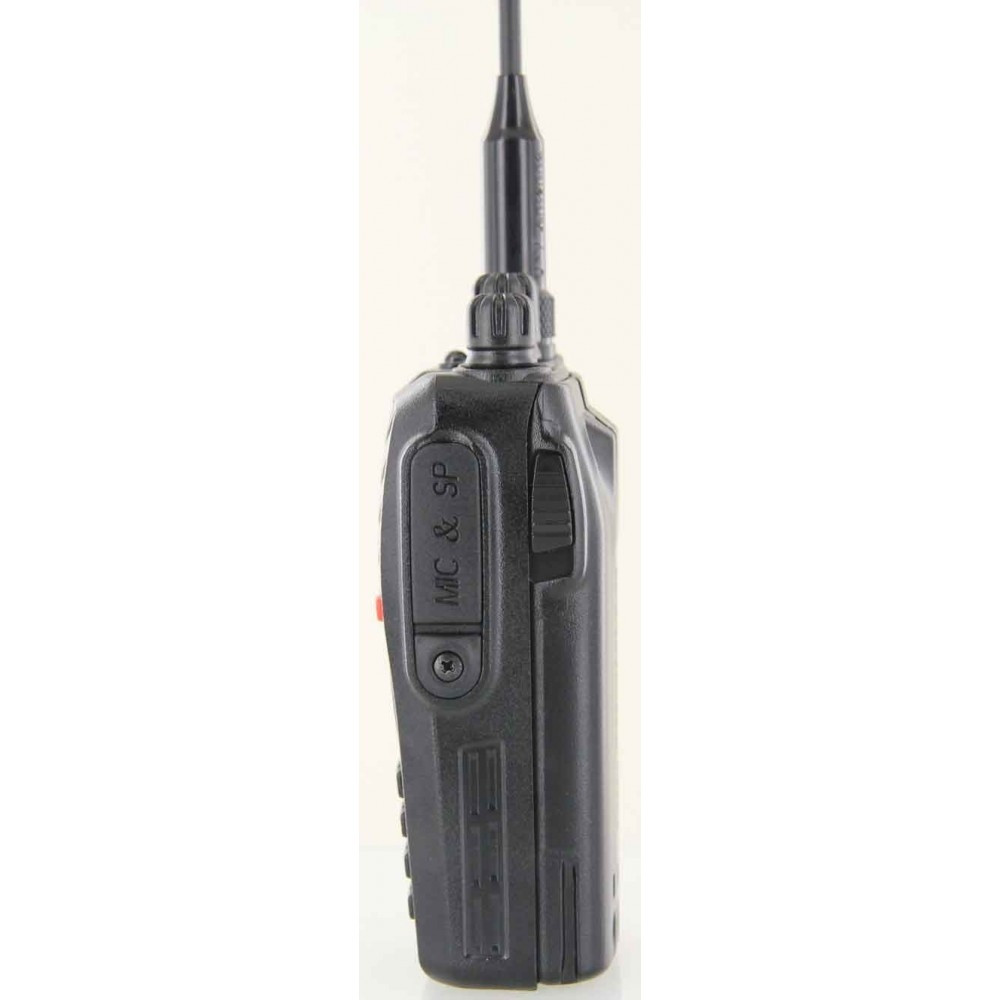

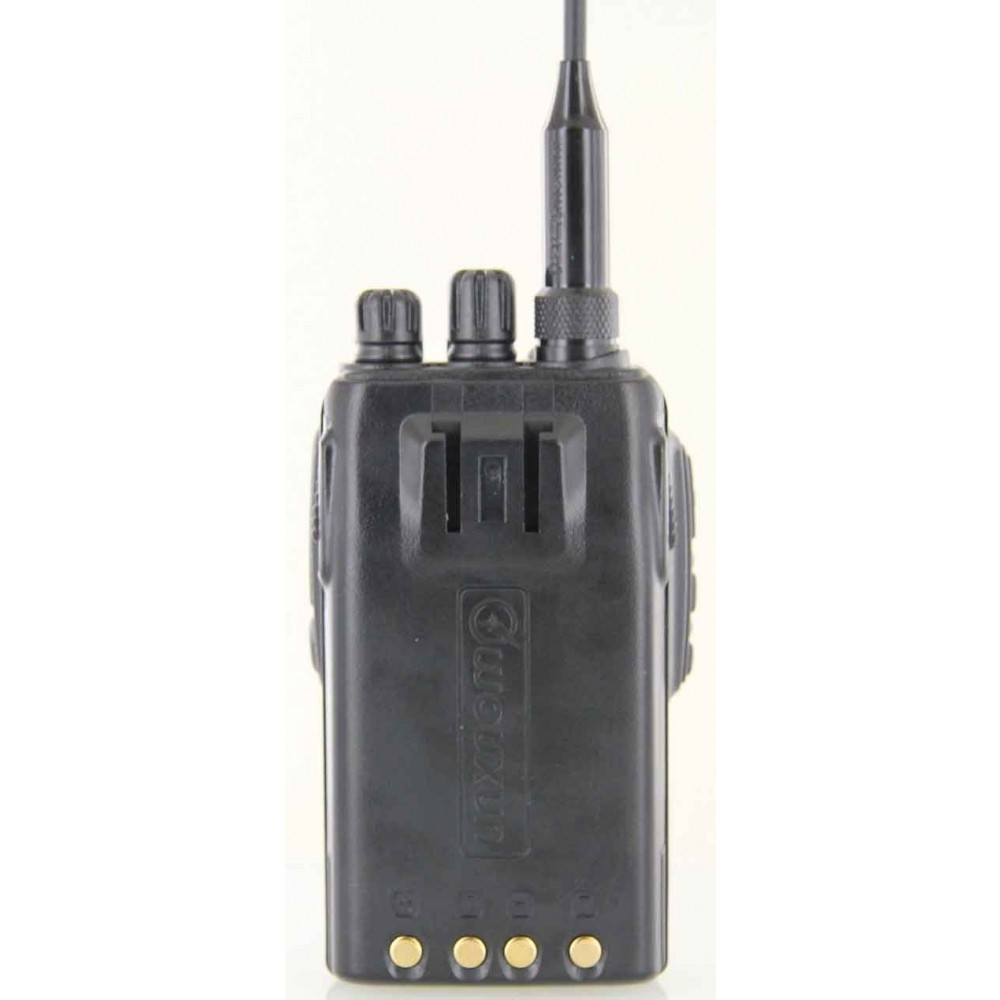

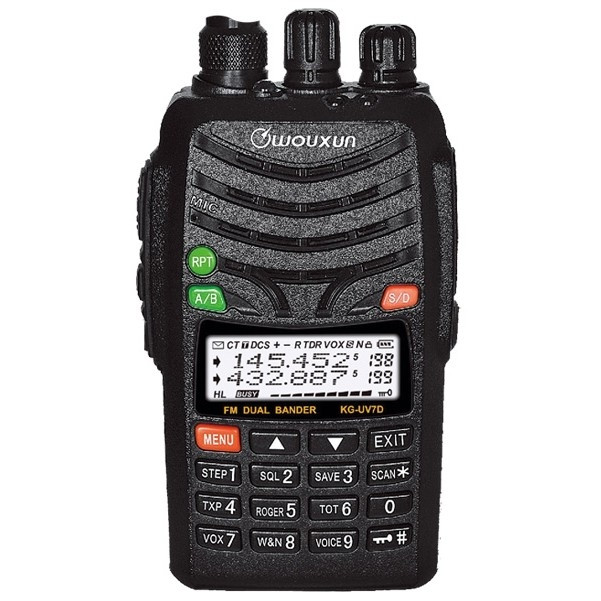

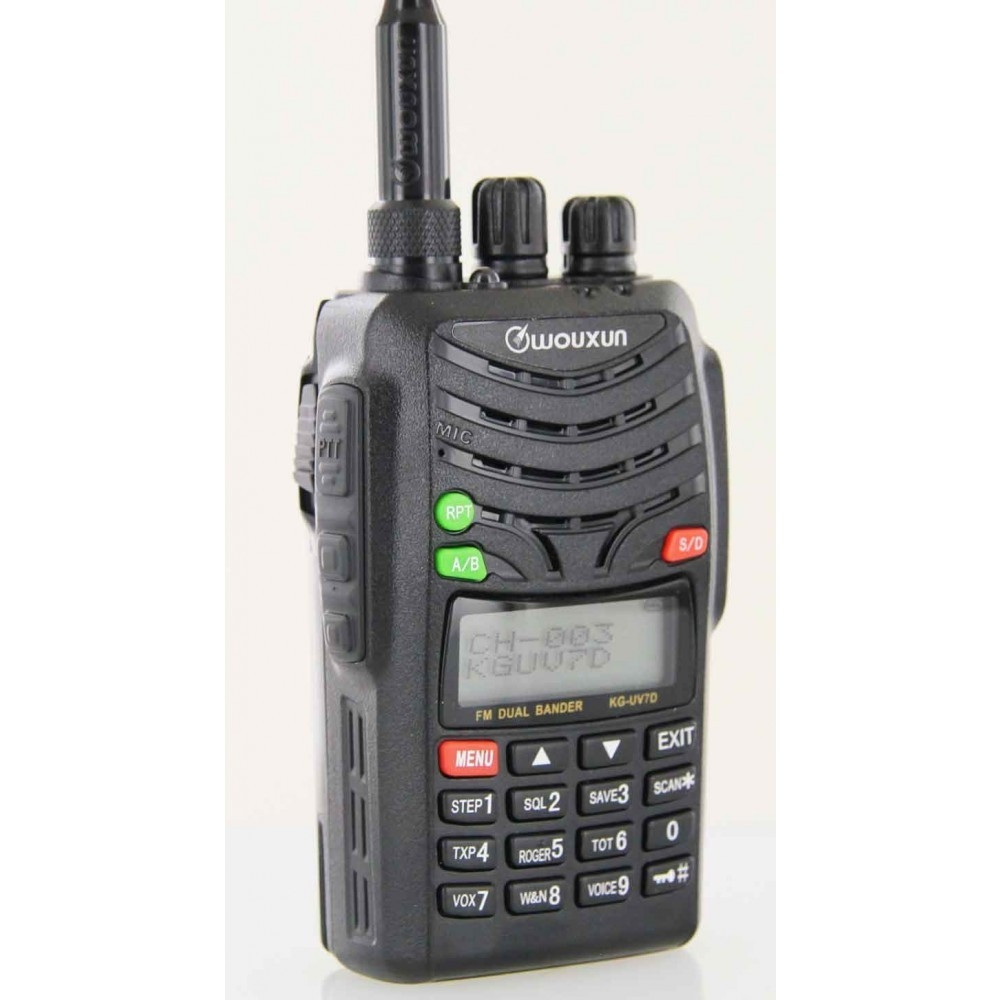

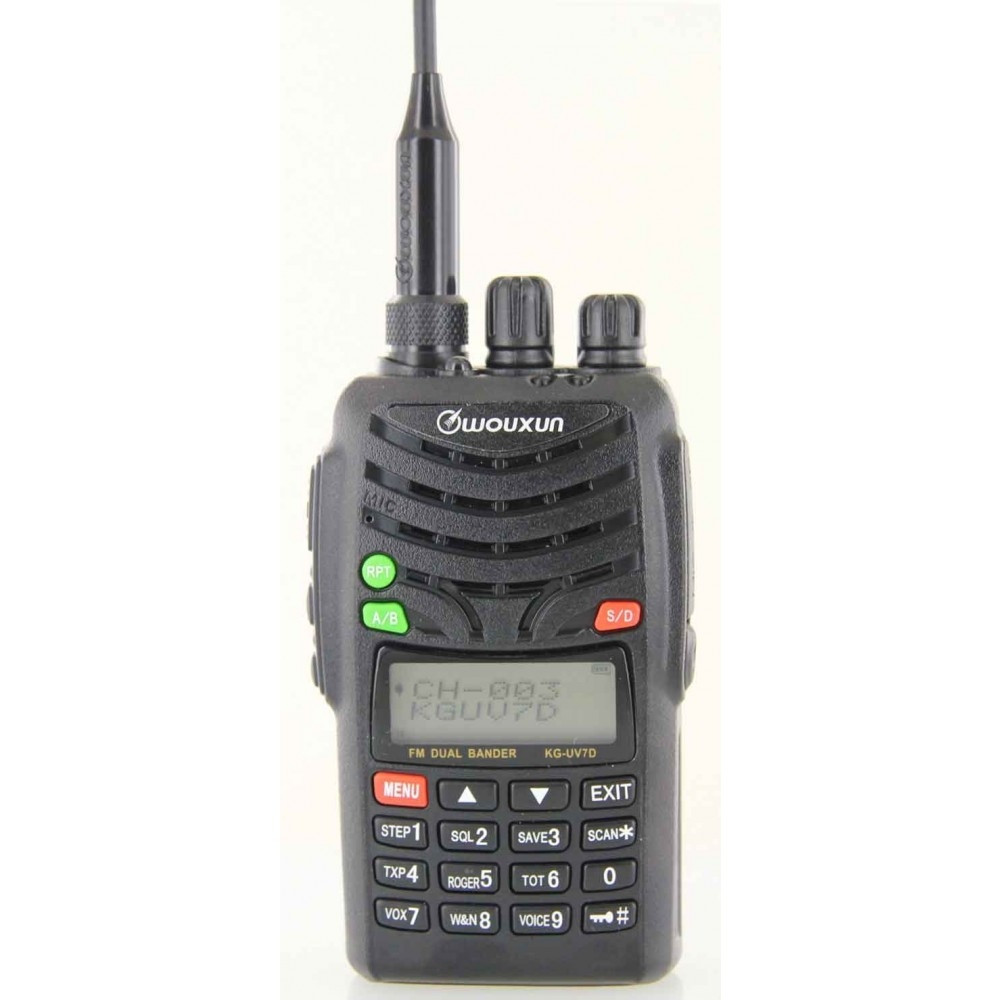

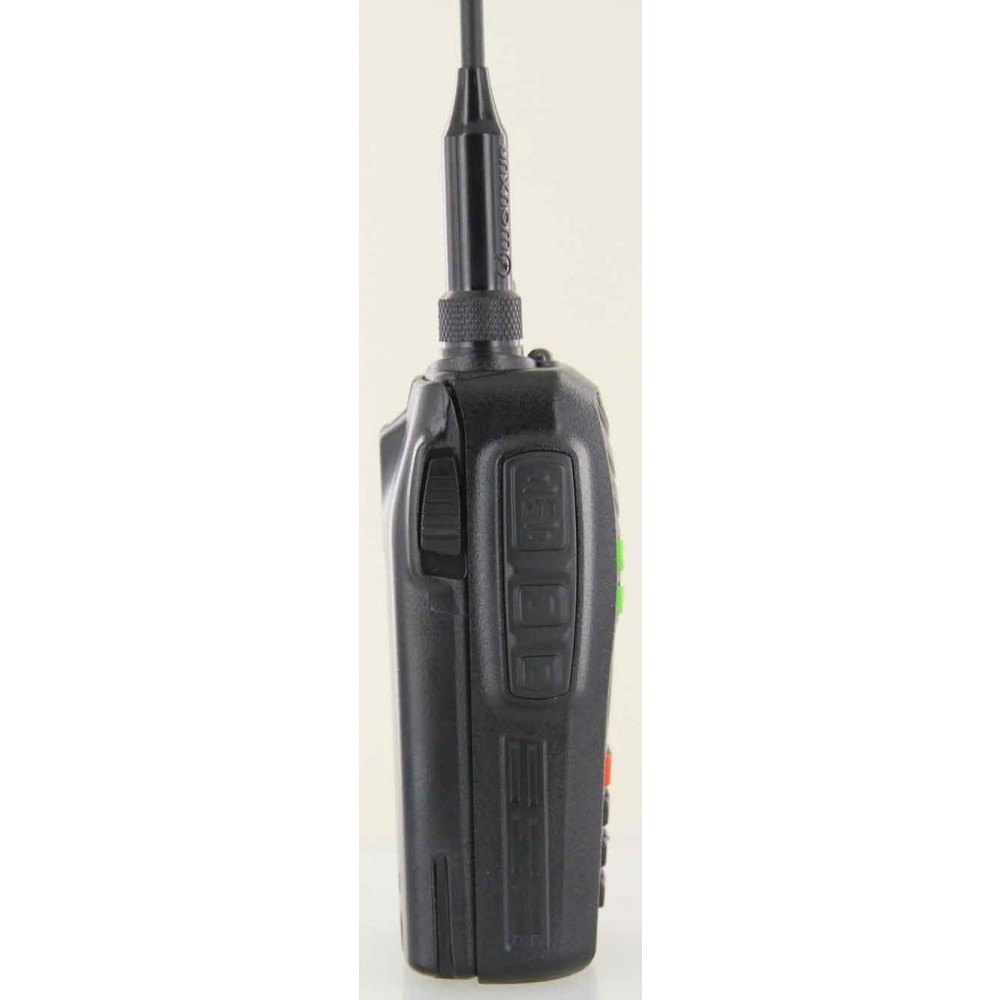

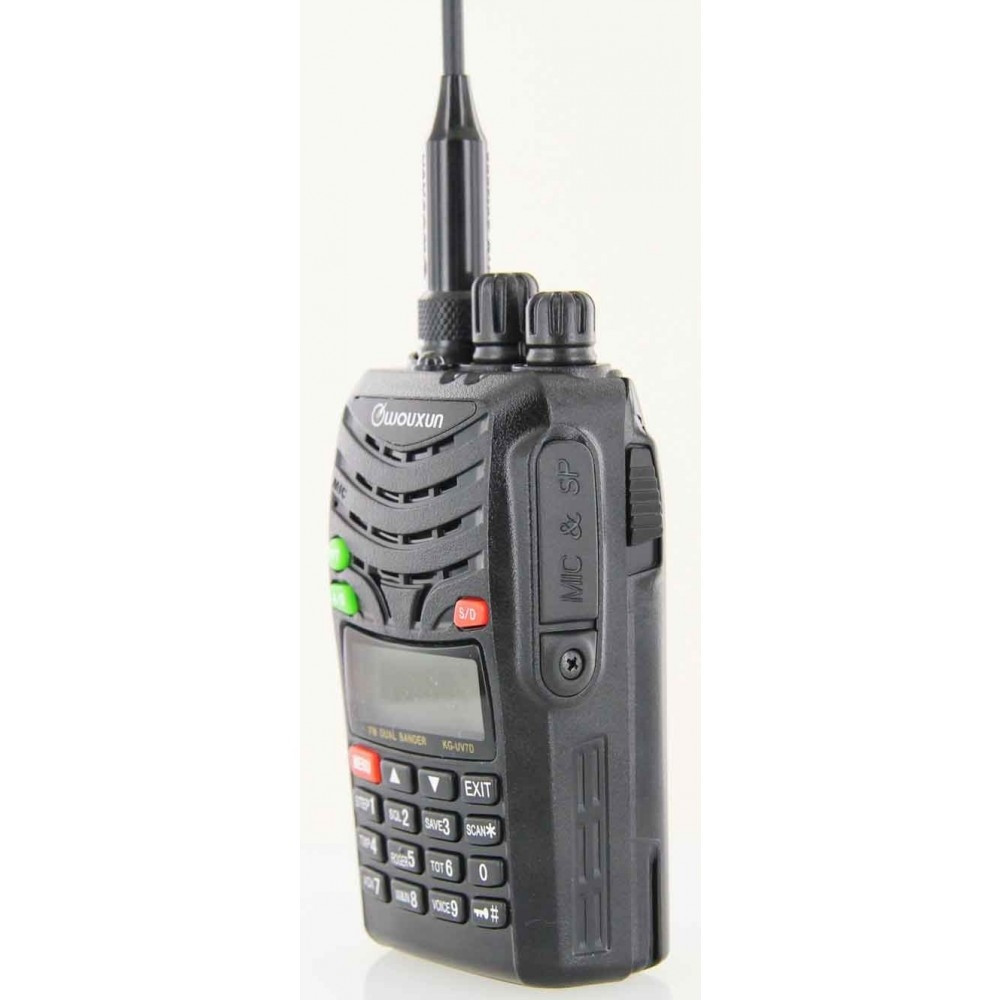

Wouxun KG-UV7D High Power Dual Band Amateur Radio

93 17 100 0
DUAL BAND!! DUAL FREQUENCY!! UP TO 7 WATTS POWER ON 2 METERS VHF!!

Quick Overview

Want a handheld with more power? Here it is! The Wouxun KG-UV7D is a high power dual band radio loaded with powerful features at an affordable price. With a whopping 7 watts VHF on 2 meters, and 5 watts on the alternative band the KG-UV7D provides the RF carrier power of a high end portable handheld without the high end cost. Available in 2M/70cm (UHF 420-450 MHz), 2M/1.25M (220 MHz) and 2M/6M (50-54 MHz) frequency ranges.
Free Shipping

Availability: In stock

$119.99
$119.99

Details

Now available - your choice of 2M/70cm, 2M/1.25M and 2M/6M versions!

The 2M/70cm version radio has been approved by the FCC. Type accepted for Part 90, FCC ID WVTWOUXUN07. The 1.25M and 6M versions are for amateur use only.

Want a handheld with more power? Here it is! The Wouxun KG-UV7D is a high power dual band radio loaded with powerful features at an affordable price. With a whopping 7 watts VHF on 2 meters, and 5 watts on the alternative band the KG-UV7D provides the RF carrier power of a high end portable handheld without the high end cost. Available in 2M/70cm (UHF 420-450 MHz), 2M/1.25M (220 MHz) and 2M/6M (50-54 MHz) frequency ranges.

The KG-UV7D features 199 programmable memory channels with CTCSS and DSC Scan, priority channel scanning, and 1750 Hz burst tone. It's bandwidth selectable, allowing you to select wide or narrow bandwidth at the press of a button. Bands can be freely set on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well, giving you the option to transmit in high or low power mode.

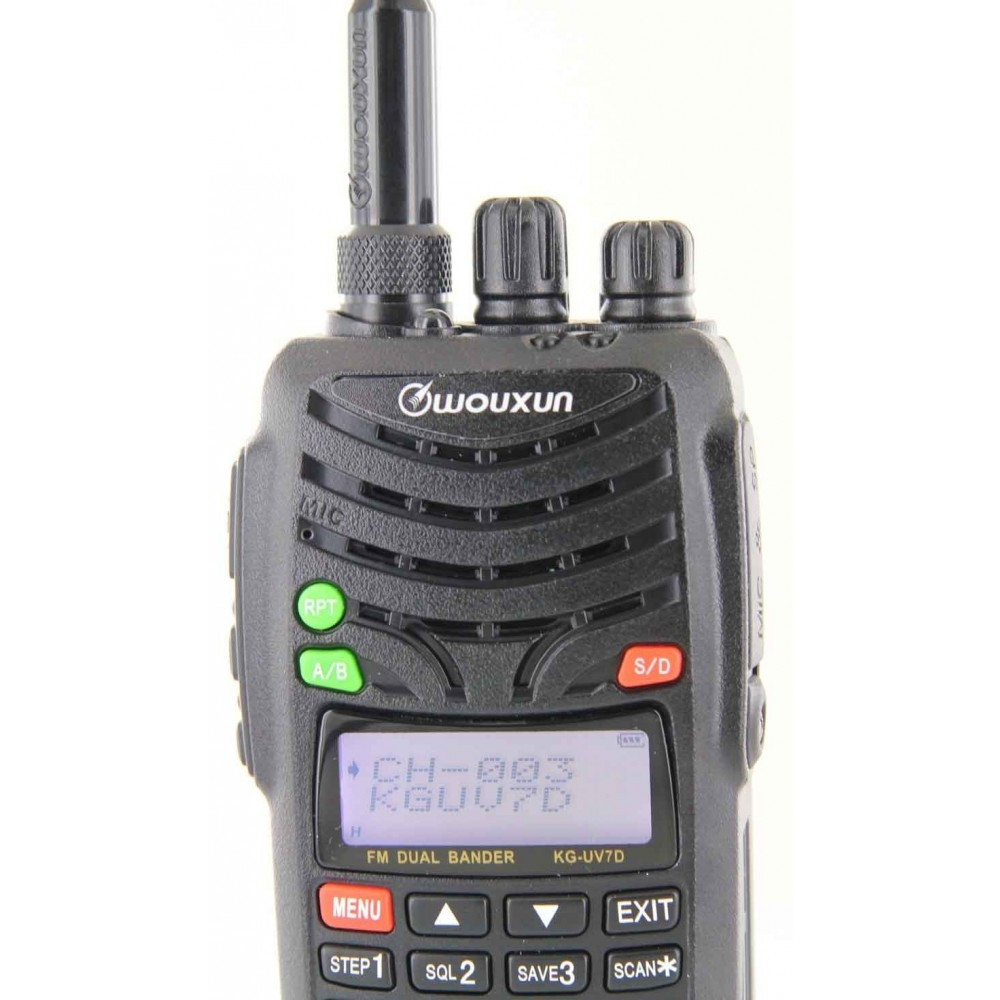

But the features don't end there. Wouxun has built in a lighted LCD display that is selectable in Channel Mode, and a Power-On display message that is customizable. The full featured keypad is also backlit and voice prompts assist you with menu navigation.

Want more features? Channel Name edit and display, Dual Standby, 76-108Mhz FM radio, DTMF encoding, Transmit Overtime Voice Prompt, low voltage voice prompt, channel name edit and display, SOS function, VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight are all standard on this radio.

The UV7D is also rated IP55 water resistant, a plus when taking it with you outdoors.

The KG UV7D is powered by 7.4v 1700mAh (12.58Wh) Li-Ion battery pack for many hours of operation. Power Saver Mode helps increase efficiency and preserve battery life.

The Wouxun KG-UV7D comes with a rechargeable Li-Ion battery pack, belt clip, removable antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.

Wouxun KG-UV7D Features

  • 199 Memory Channels
  • Dual Band
  • 2M/70cm Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/70cm Version: 375-512MHz UHF Frequencies (RX only) / 420-450MHz (TX only)
  • 2M/1.25M Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/1.25M Version: 216-260MHz UHF Frequencies (RX only) / 222-225MHz (TX only)
  • 2M/6M Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/6M Version: 50-53.995MHz VHF Frequencies (RX/TX)
  • Repeater Capable
  • 7 Watt VHF Transmit Power
  • 5 Watt UHF Transmit Power (70cm Version)
  • 5 Watt Transmit Power on 220MHz (1.25M Version)
  • 5 Watt Transmit Power 50MHz (6M Version)
  • Li-Ion Battery Pack
  • Rechargeable Battery Included
  • Battery Charger
  • FM Radio
  • Bandwidth Selectable
  • Channel Memory
  • Channel Scan
  • Priority Scan
  • Multi Scan Mode
  • High / Low Power Selection
  • Burst Tone 1750Hz
  • Busy Channel Lockout
  • Reverse Frequency Function
  • CTCSS/DCS Tones
  • CTCSS/DCS Tone Scan
  • Backlit LCD Display
  • Backlit Keypad
  • Customizable Power-On Display Message
  • Channel Name Edit and Display
  • Battery Meter
  • Low Battery Alert
  • Power Saver
  • Auto Power Off
  • Timeout Timer
  • Transmit Overtime Voice Prompt
  • SOS Function
  • VOX
  • Auto / Manual Keypad Lock
  • Audible Button Beeps
  • Begin / End Transmitting Beep Prompt
  • Drop-In Charge Capable
  • Audio Accessory Connector
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • IP55 Water Resistant
  • LED Flashlight
  • Stopwatch
  • DTMF Code
  • Reset
  • One Year Manufacturer Warranty

Included with the Wouxun KG-UV7D

  • Wouxun KG-UV7D Two Way Radio
  • Li-Ion Battery Pack

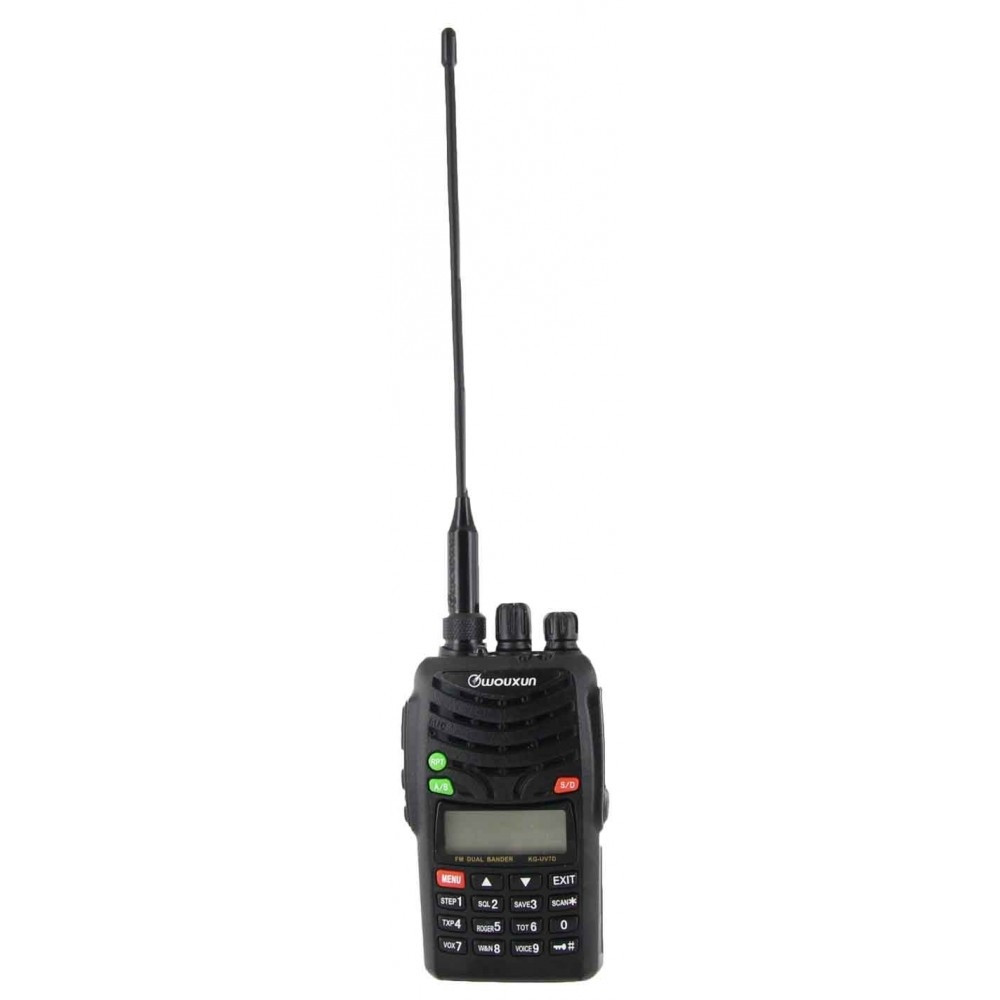

  • Removable Antenna
  • Belt Clip
  • Wrist Strap
  • Charger Tray
  • AC Cable
  • Owners Manual

Wouxun KG-UV7D Specifications

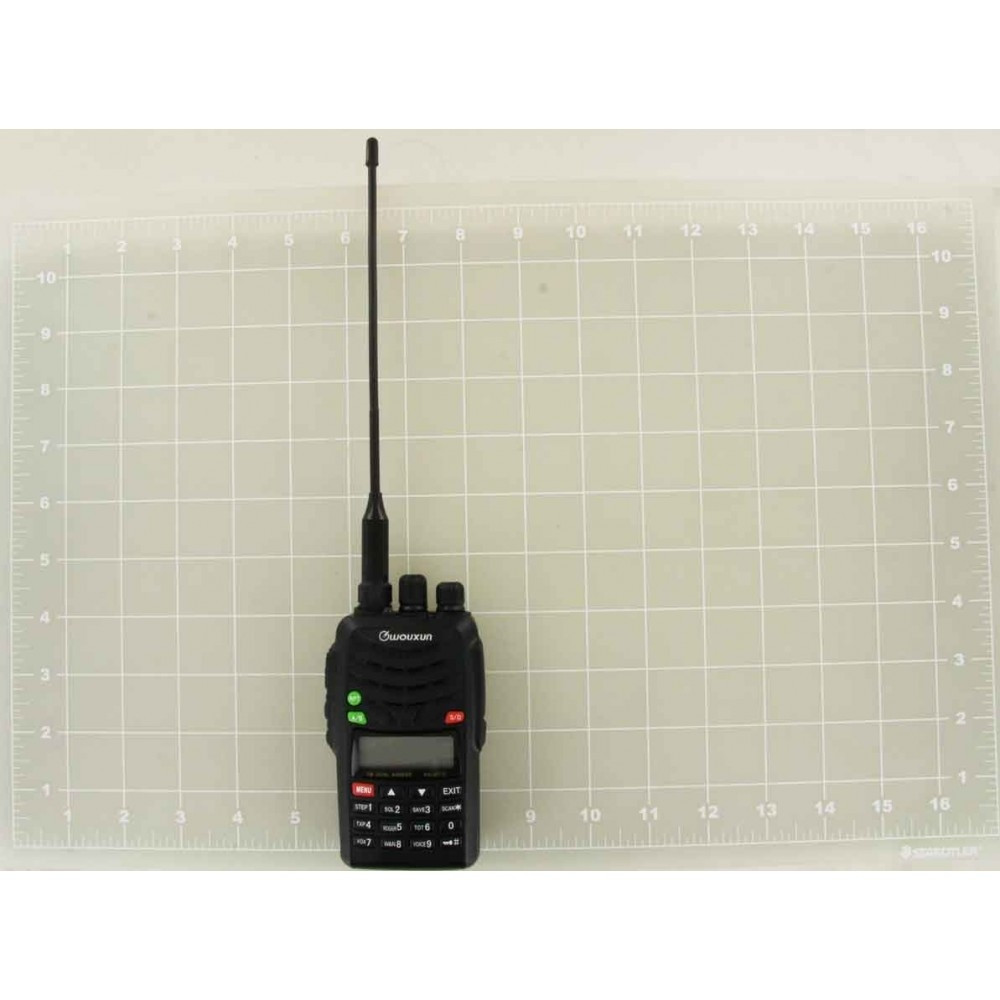

  • Dimensions: 65mm × 119mm × 39mm
  • Weight: 253g

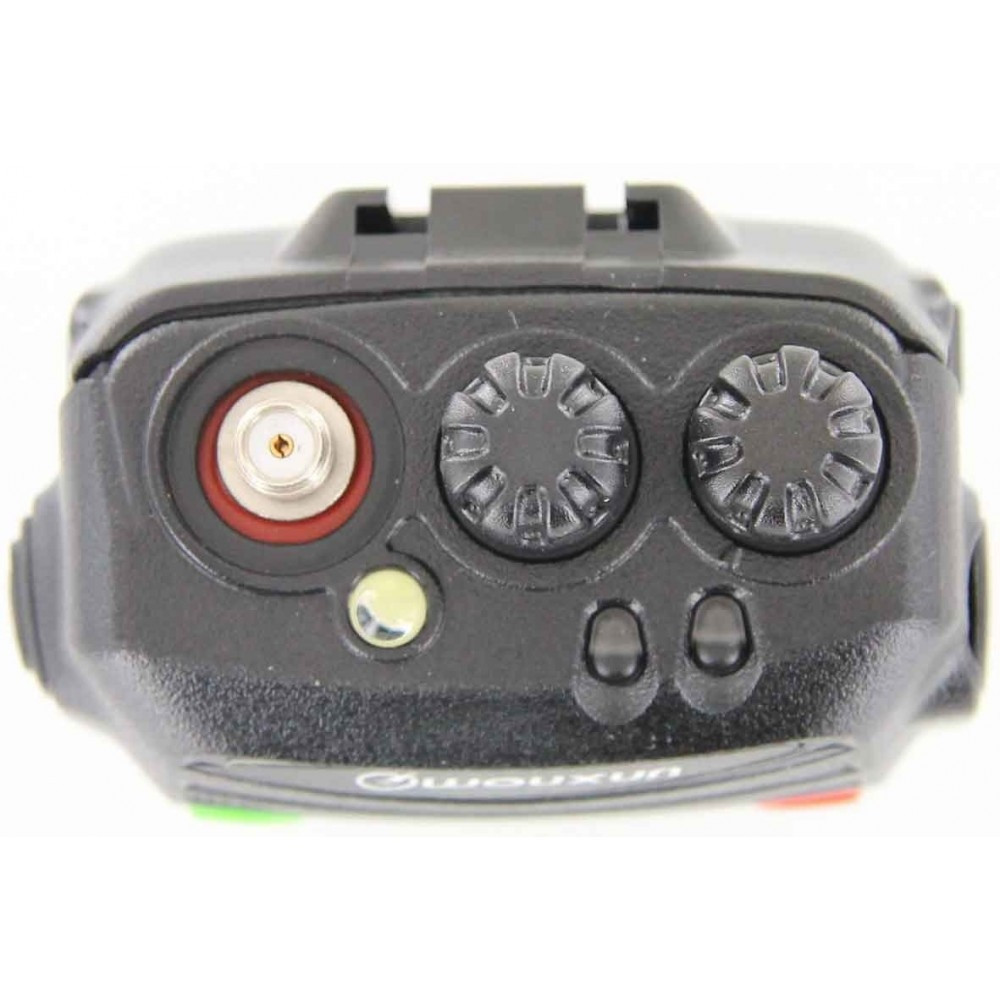

  • Antenna connector type (2m/70cm version): SMA Female (Standard)
  • Antenna connector type (2m/1.25m version): SMA Female (Standard)
  • Antenna connector type (2m/50Mhz version): SMA Female (Standard)

Additional Information

Warranty 1 Year
IP Rating IP55
FCC ID WVTWOUXUN07 (2M/70cm), WVTWOUXUN05 (1.25M), WVTWOUXUN04 (6M)
Channels 199
Maximum Output Power 5 Watts
Radio Type Handheld
Services Amateur
Safety Features Flashlight
Digital Standard Analog Only
Integration Repeater Capable
Frequency Bands 1.25 Meter (220), 2 Meter (VHF), 6 Meter, 70 cm (UHF)
  1. Very Practical Radio review by AG6GX on 12/2/2023
    Rating

    Has all the features you need with little bling that would drain battery life.

  2. Great radio excellent service review by Dino Z on 4/19/2023
    Rating

    I bought this radio for 6 meter use it works well and it’s very easy to get up and running. I would definitely do business with this dealer again

  3. Fine radio review by Stan on 3/22/2023
    Rating

    Well made and works very well.

    The programming software is quick and easy to use.

    It talks many fars!

  4. A little better than my KGUV6D review by foamhand on 2/27/2023
    Rating

    Looks better than my KGUV6D but still a bit wide and bulky for my smaller hands. Flimsier case than the newer Wouxun offerings and I'm afraid to drop it. I have set it up as a base radio, but my KGUV8H is much more robust feeling and will be my daily carry radio. Higher power hasn't made much difference in my observation and it might help in fringe areas, but for normal comms, you have to increase power 4X to notice a real difference. it may just run the battery down faster with the extra couple watts, but being a base unit on the charger most of the time, this is a moot point for me. Good buy for the price.

  5. 50Mhz and 222Mhz models I have both review by NTZ on 2/12/2023
    Rating

    I highly recommend both models. Great sound and TX-RX performance. I also recommend the larger Battery for lasting all day.

  6. 6 meters is making a comeback. review by Alonzo on 1/3/2023
    Rating

    I bought this because 6m band is making a comeback due to recent propagation, And thanks to the venerable Baofeng and other dualband handhelds, the 2m/70cm bands and repeaters will be completely saturated during emergencies.
    This radio arrived quickly and after programming it with it's CPS, I then used Chirp to program it - and you are able to change the transmit frequencies in Chirp as well. So this thing actually transmits below and above the 6m band - I'm just not sure how much leeway we have (I'm not ruining mine to find out).
    The stock antenna isn't that good on 6m, so I bought an Opek antenna which works amazing.
    I can now backpack or bike and have connectivity for 40-60 miles away from the repeater depending on altitude.

  7. performance of radio review by madmanmike on 9/17/2022
    Rating

    Got the radio with very fast shipping. Power output measured with a calibrated IFR 2975 monitor shows vhf power 5.4 watts and 6 meter power of 5.3 watts. Wouxun must have given me the wrong band split antenna as the 6 meter performance was very poor. I swapped the antenna that came with the radio with my Icom T-90 antenna and 6 meters worked great. If I actually got the right 2m/6m antenna with the radio, it has very poor performance on 6 meters. Summary is lower power than advertised, very poor antenna. Swap antenna with aftermarket antenna and you have a great working 5 watt radio.

  8. Quick Delivery! review by Ham Solo on 8/8/2022
    Rating

    The order arrived quick to my door by 3 days! Nice! The radio works as expected and was happy because this is the only 6 meter capable HT that I know of to date. Thanks BTWR!

  9. Talks with Military radios. review by Bill on 7/21/2022
    Rating

    Several folks in our Military Vehicle group either don’t have RT-524 radios or their RT-524 stopped working. The Military radios, Vietnam era and earlier, use the 6 meter band. This KG-UV7d in the 6M frequency works excellent and allows them to communicate with other Military Vehicles in a convoy situation. I’m glad to have found this awesome handheld and glad Wouxun has offered it.

  10. Very good! review by K3STP on 4/16/2022
    Rating

    I bought this radio on reviews and Notarubicon on his many reviews on this brand. I am happy with the quality, smart charger and the radio talks and listens very well. great bang for the buck! Works with chirp , easy to program! All function , no useless frills, buy it!

  11. The KG-UV7D GREAT RADIO A MUST HAVE!!! review by Hamboy on 4/12/2022
    Rating

    This Is One GREAT HT Radio Transceiver !!!! The KG-UV7D Is The One To Have As Being A Amateur Radio Operator Very Dependable Excellent. I Got The 2Meter VHF & 440UHF Version No Problems At All. Awsome Receiving & Transmitting Reports. Bottom Line I Would Seriously Recommend This HT As Being A Amateur Operator I Bought 2 As One As A Backup Also I Bought The AA Alkaline Battery Cases Fir Emergency & Everyday Use & Thank You Wouxun For Another EXCELLENT Amateur Handheld & Thank You Buy 2 Way Radios Very Fast Service & Shipping !!!????????

  12. Great Radio! review by W1HJW on 12/31/2021
    Rating

    I bought the KG-UV7D with the 6M option. I live about 4 miles from a 6M repeater so this was a no brainer. I can get get into the repeater full quieting from my basement! Solid feel and easily programmed via CHIRP. Highly recommended!

  13. Great Radio review by Kinz on 5/27/2021
    Rating

    New Ham Radio operator. My husband & I both have one. very nice radio. excellent range for a Hand held.

  14. excellent little 2m/6m handy review by Tom / k4eeo on 4/5/2021
    Rating

    as a portable, it's getting good reports from the local 2m repeater and simplex folks.. also good reports with simplex on 6m (no local 6m repeaters)... that said, I'm easily hitting repeaters 40~60 miles away, when connected to a 6m j-pole mounted on a 25' mast. I'm happy with that.

  15. Good but notb7bwatts review by Nytestryker on 10/21/2020
    Rating

    Good radio but only 5 watts, not 7 watts like advertized. Inside the battery area it says 5 watts. Only 5 watts on my poqer meter roo.

    Kind of bummed. Maybe they aent me the wrong radio?

  16. GREAT WORKING RADIO!!! review by KP3K on 9/15/2020
    Rating

    BEST of THE BEST!!!

  17. ITS ABOUT TIME. review by GORDITO on 4/10/2019
    Rating

    After purchasing a few KG-UVD1P's & KG-UVD6, i was awaiting something new from Wouxun with a bit more kick to it, and WALAAA!! The KG-UV7D is it!! Easy purchasing experience with fast shipping & delivery.
    Never had issues with Wouxun products and dont expect to have them! Seriously recommending the nee Wouxun KG-UV7D to all mateur radio fanatics!
